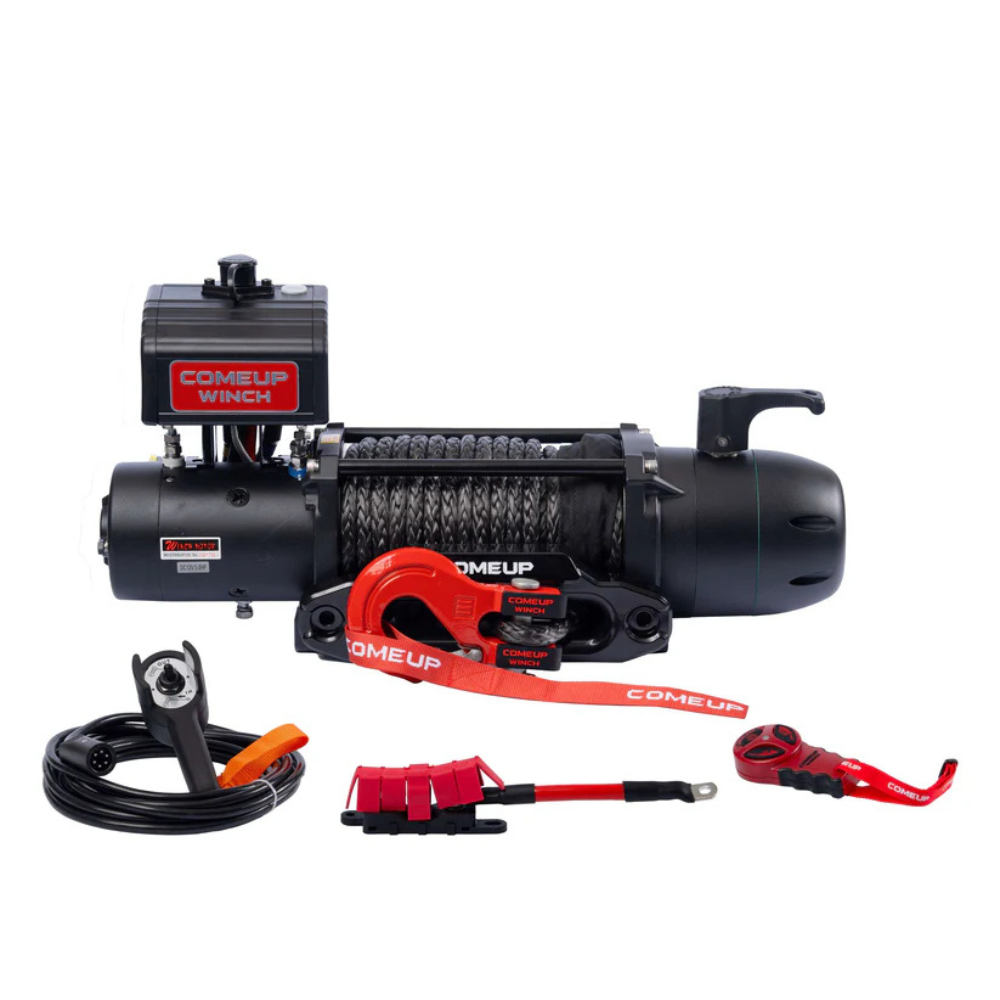

ComeUp Slim 9.5RS Trail Edition

Description

The Slim 9.5rsi Trail Edition is here. We engineered an integrated control box and motor, creating a single, radically compact unit. The result is a winch that disappears into your vehicle with a seamless, low-profile installation.

It’s not just how it looks. It’s how it works. Featuring the innovative BossHook M and a specialized fuse kit for a new level of protection and capability.

Specifications:

• Rated Line Pull 9,500 lbs (4,309 kg) single line
• Motor 5.0 hp / 3,730 w 12V Series Wound
• Gear Ratio 3-Stage Planetary 159:1
• Clutch (freespooling) Rotating Ring Gear
• Brake (outside the drum) Automatic, full load CBS (Cone Brake Structure)
• Winch Construction Aluminum Die Cast Housing with Steel Drum
• Drum Size 2.5" x 8.9" (63.5 x 227 mm)
• Control Both built-in digital two way signal wireless remote control and waterproof remote with thermometric indicator LED w/17' (5 m) cord
• Synthetic rope  3/8” x 76’ (10 mm x 23.2 m)
• Warranty Limited lifetime warranty for mechanical components, three (3) year warranty for electrical components

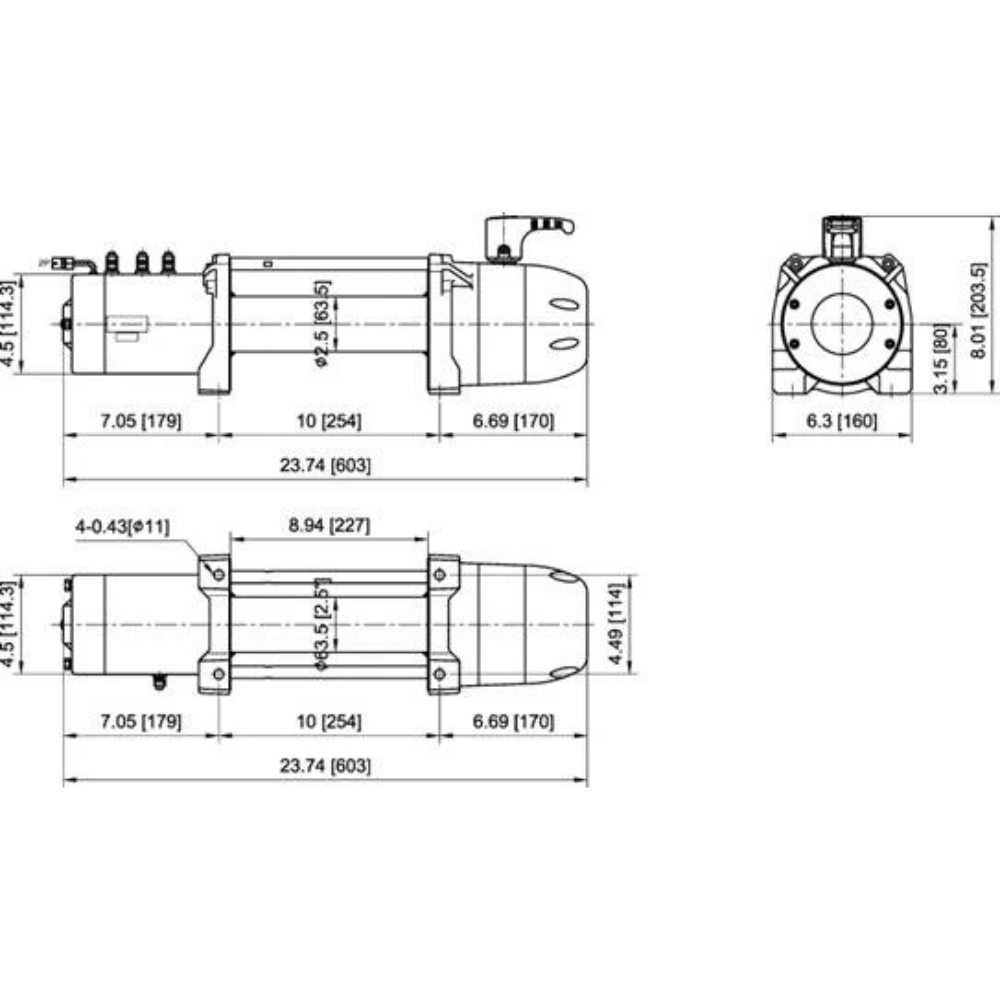

• Box Dimensions 26.9" x 8.2" x 16.9" (682 x 209 x 430 mm )
